Fuel Line Kit For Land Rover Defender 90 200Tdi (1990-1994) With Sedimenter
FLK-011
Pairs well with

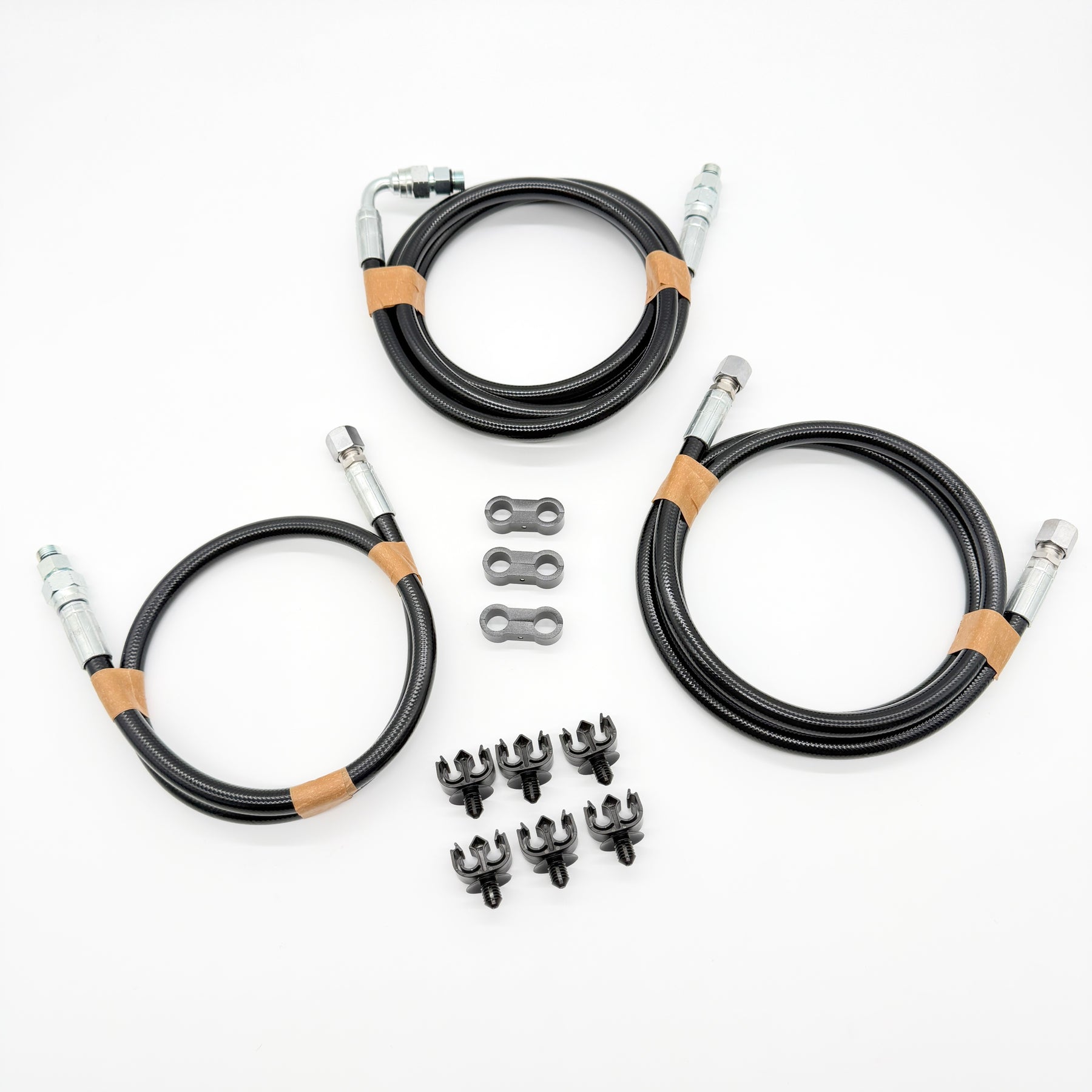

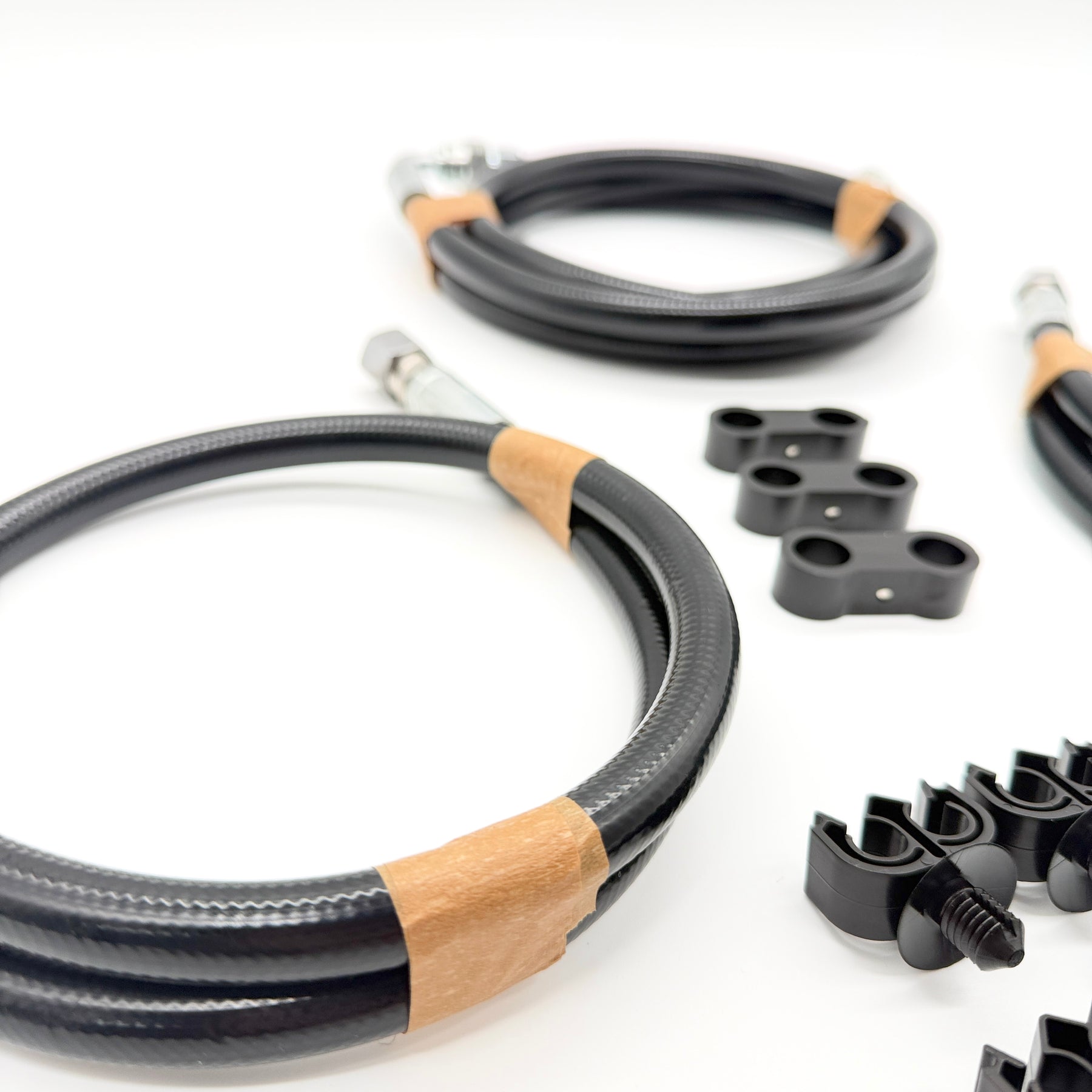

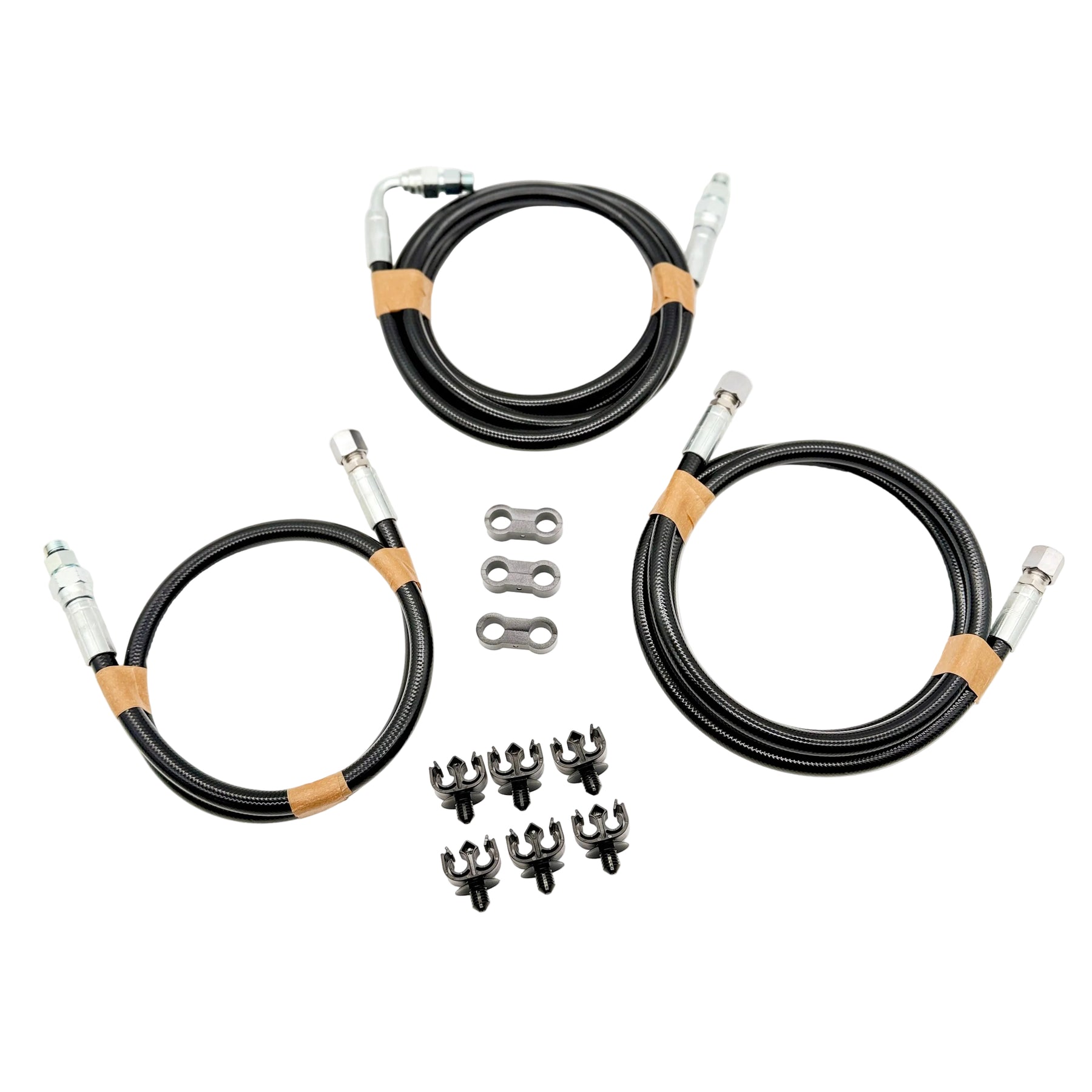

A three-line stainless steel braided fuel line kit for the Land Rover Defender 90 200Tdi with sedimenter, covering 1990-1994 models.
The Pioneer 4x4 Fuel Line Kit replaces the three external fuel lines between the fuel tank, sedimenter and lift pump. High-quality fittings are swaged directly onto braided PTFE hose for a secure connection and long-term resistance to corrosion and abrasion.
Built for durability and a clean install

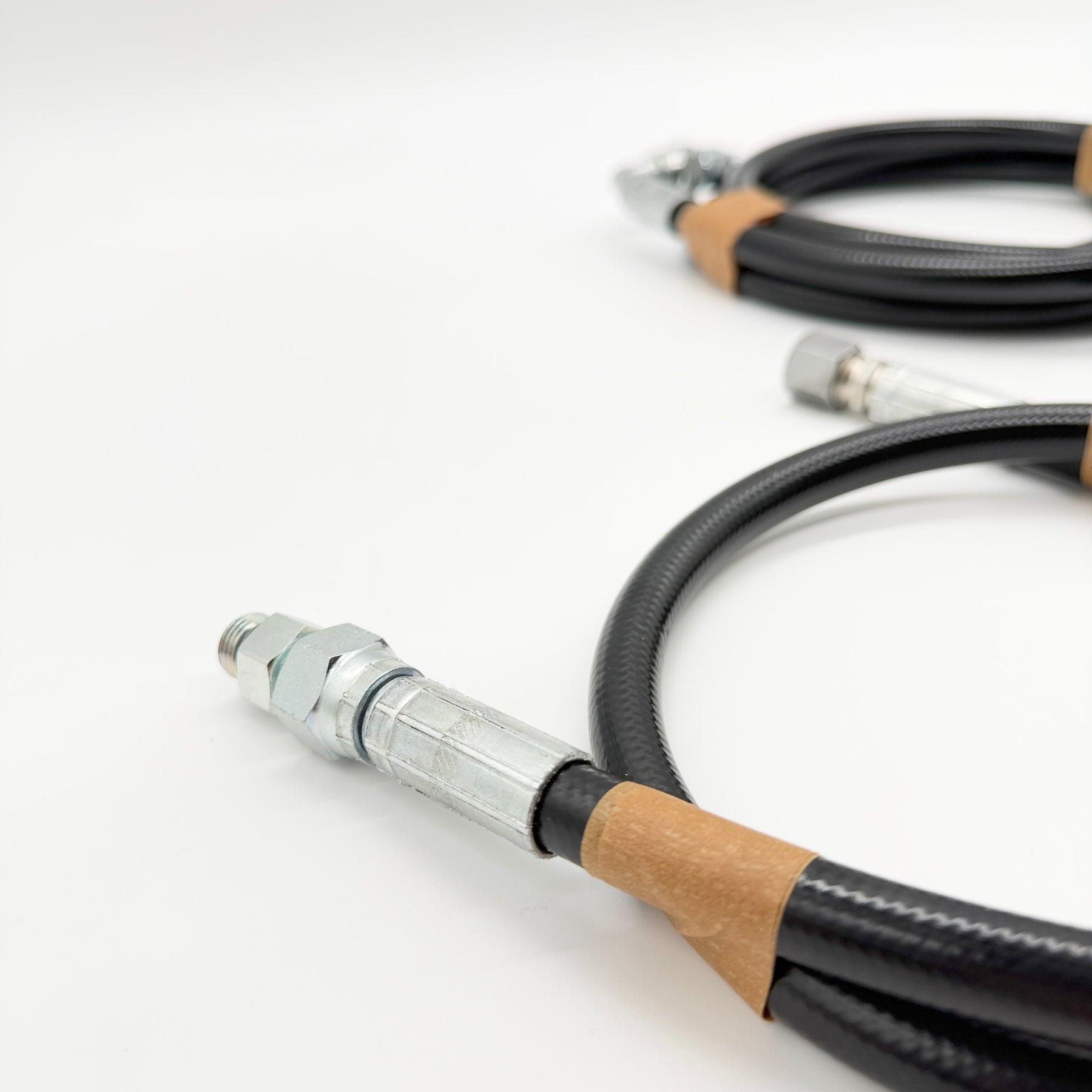

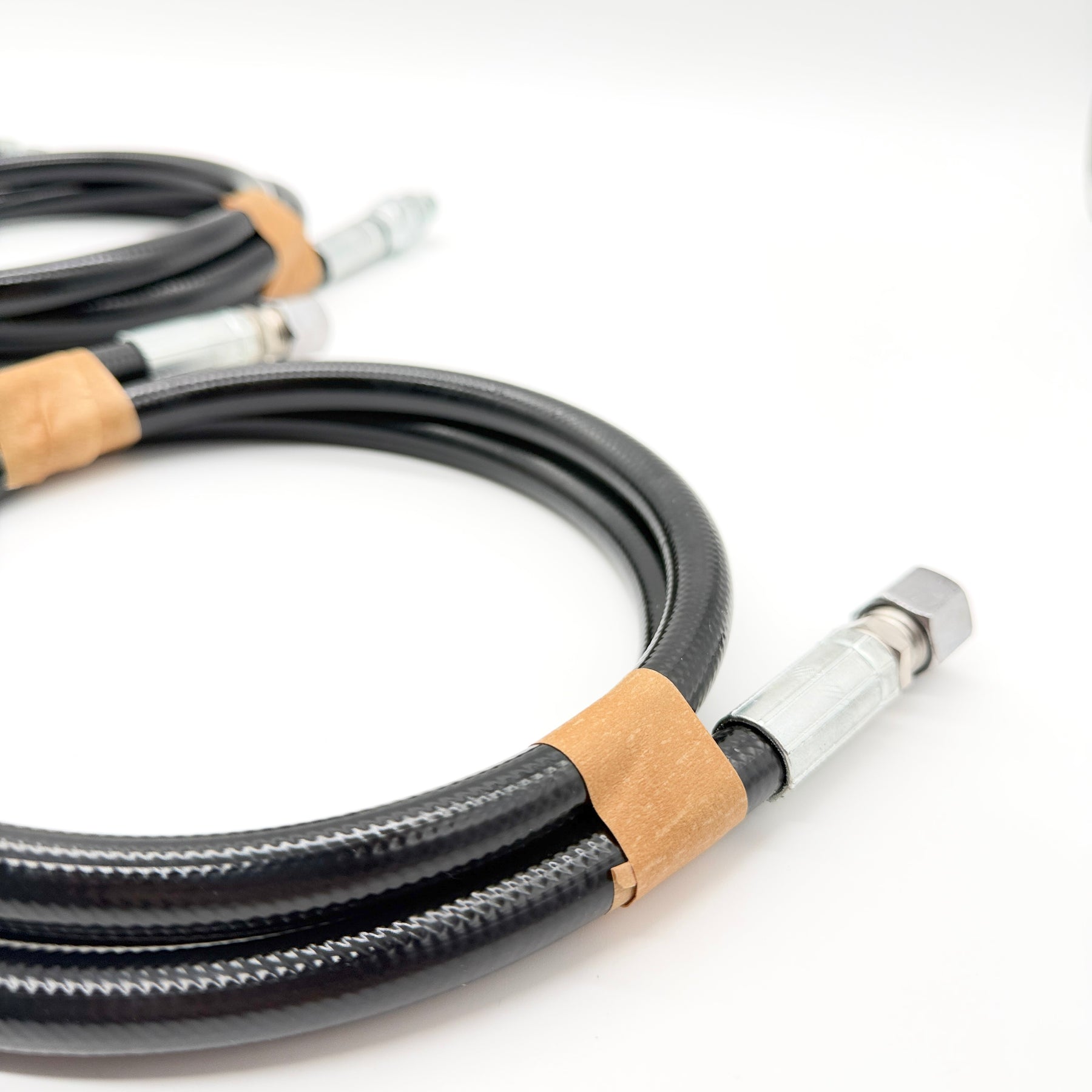

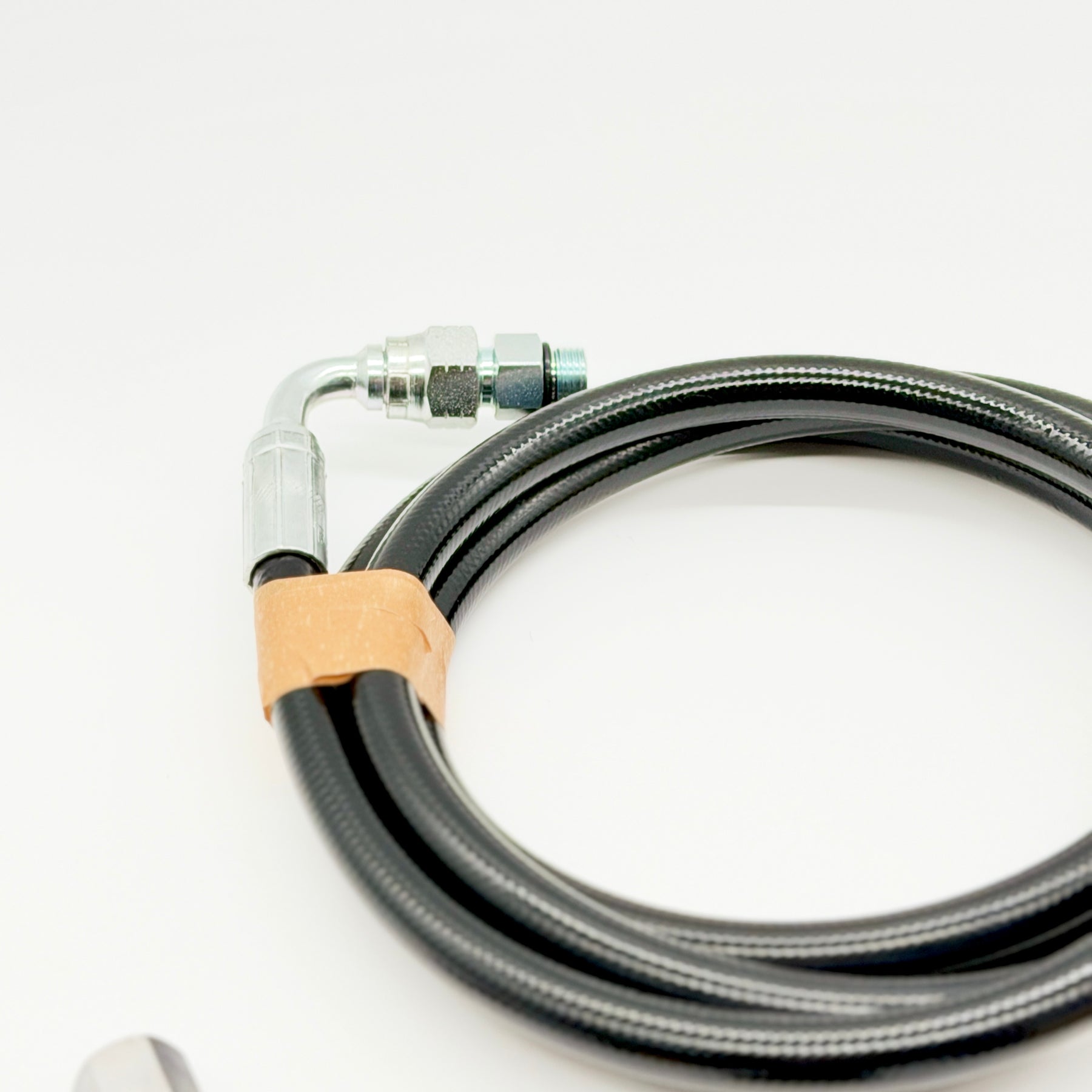

Swaged fittings on braided PTFE hose provide a secure, streamlined connection, while the stainless steel braid helps protect the fuel lines from corrosion and abrasion.
- High-quality construction — braided PTFE hose with swaged fittings for secure, durable performance
- Corrosion & abrasion resistant — stainless steel braid helps protect the fuel lines for long-term durability
- Three-line kit — supplied with the three vehicle-specific fuel lines listed below
- Fuel tank to sedimenter line
- Sedimenter to lift pump line
- Fuel return to tank line
OE part numbers – Defender 90 200Tdi with sedimenter
- NTC4601 — Fuel tank to sedimenter pipe.
- NRC8923 — Sedimenter to lift pump pipe.
- NTC5728 — Fuel return/spill-rail to tank pipe.
Land Rover OE references are provided for identification of the original pipework replaced by this Pioneer 4x4 product. References apply to the original 200Tdi Defender 90 arrangement with a sedimenter, up to VIN LA939975. Confirm the original connections if the tank, sedimenter or engine has been changed.
Remove old nuts & olives first
Before fitting, remove the original nuts and olives from the fuel tank, sedimenter, lift-pump and fuel-return tails. The new Pioneer 4x4 fittings use a different thread, so the original nuts and olives are not compatible. This kit contains the three fuel lines only; replacement nuts and olives are not supplied. Obtain new parts compatible with the line fittings. Carefully cutting an olive to free a nut can damage the tail, so fitting new parts is recommended. Do not force or reuse the original nuts and olives.
Shop replacement nuts and olives.
- Model: Land Rover Defender 90 (L315)
- Engine: 200Tdi, 2.5 litre 4-cylinder diesel
- Years: 1990-1994
- Wheelbase: 90 inch
- Configuration: With sedimenter
- Fitting type: Hard-plated steel
- Hose type: Braided PTFE
- Internal diameter (I.D): 8.13mm
- Outside diameter (O.D): 10.12mm
- Finish: Black coated
- Brand: Pioneer 4x4
Please double-check you're ordering the correct kit and quantity prior to checkout. Confirm the engine, VIN and sedimenter arrangement before ordering.
Precision-made in the UK
Hand-built in-house to upgrade and outlast your original fuel lines. Need a custom kit or individual lines? Get in touch and we'll sort you out.
